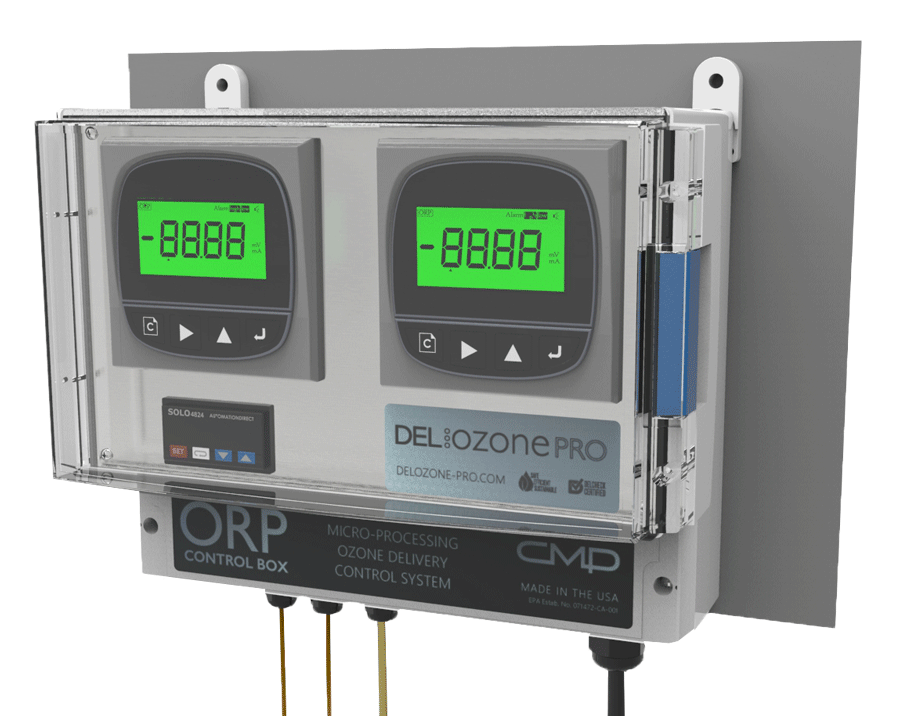

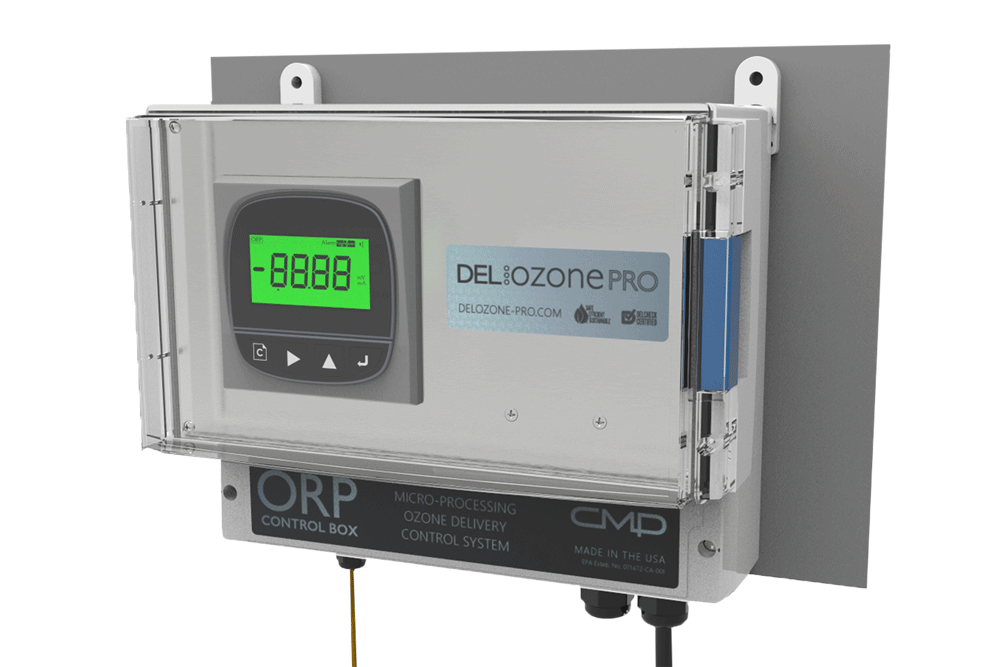

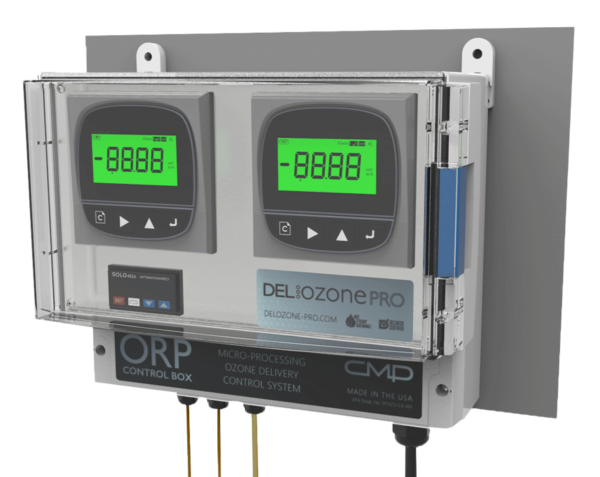

Robust ORP monitors and controls ozone output on and off based on set-point. Available in single and dual configurations. Adjustable 0-1000 mV. Models to match Ozone generators.
ORP-11, ORP-12, ORP-13, ORP-21, ORP-22, ORP-23
Custom options are available!
Call us today: 888-960-6289
Robust ORP monitors and controls ozone output on and off based on set-point. Available in single and dual configurations. Adjustable 0-1000 mV. Models to match Ozone generators.
ORP-11, ORP-12, ORP-13, ORP-21, ORP-22, ORP-23
| Compatibility | G-Class- CD 2/ 5/ 7, G-Class- CD 15/ 25/ 45, HECD- 65/ 130, P-Class- 100/ 200, Q-Class- CD 250F/ 400F/ 800F/ 1200F |
|---|---|
| Width | 5.3 in, 9.3 in |
| Height | 7.2 in |
| Depth | 5.5 in |
| Amp | .35 A (+ Switched Power Amps) |
| Hertz | 50/60 Hz |
| Voltage | 110-240 VAC |
| Configuration | Single ORP, Dual ORP |
| Ozone Output Control | Switches Power Input, 3 Wire AC Power Out, 2-Wire Dosing Contact, Proportional, 2-Wire Dosing Contact Provided for Optional Use |
| Interface | Backlit LED Display |
| Enclosure Type | NEMA Type 1, 3, 3R, 4X, 12, 13 |
4′ (1.2m) Cord with NEMA 5-15P
50′ (15m) Cable with BNC Pin Connector
± 1999 mV
1mV
± 5 mV
Adjustable, ± 1999 mV
32-122℉ (0-50℃), 85% RH Non-Condensing
4-20mA Analog, Active, Isolated
