BACK

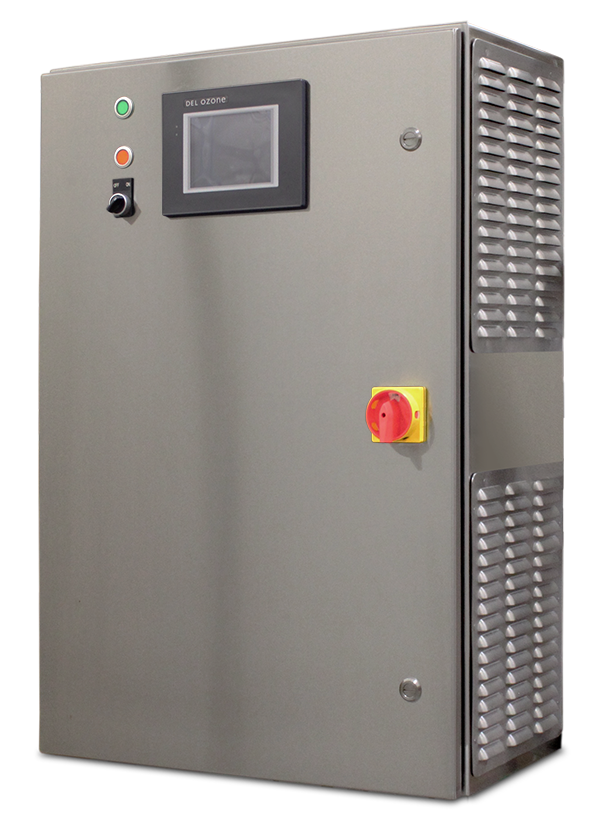

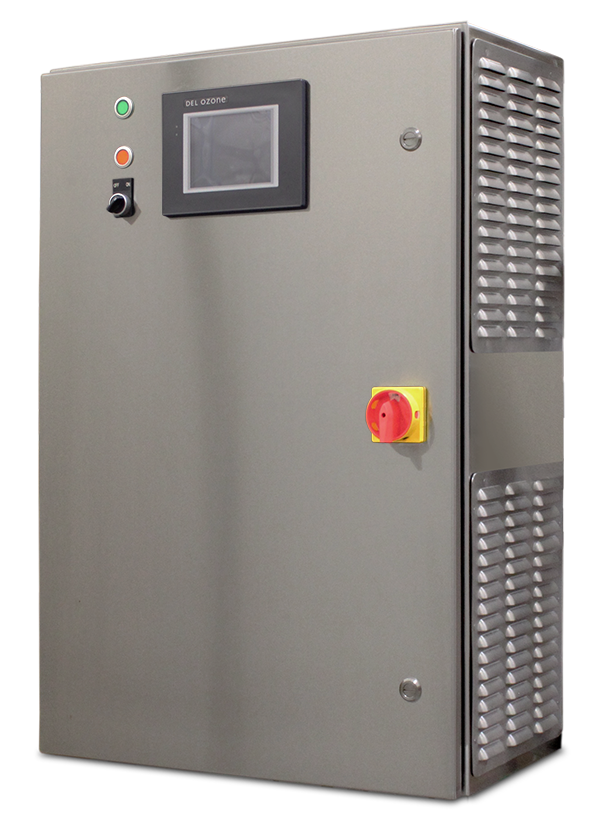

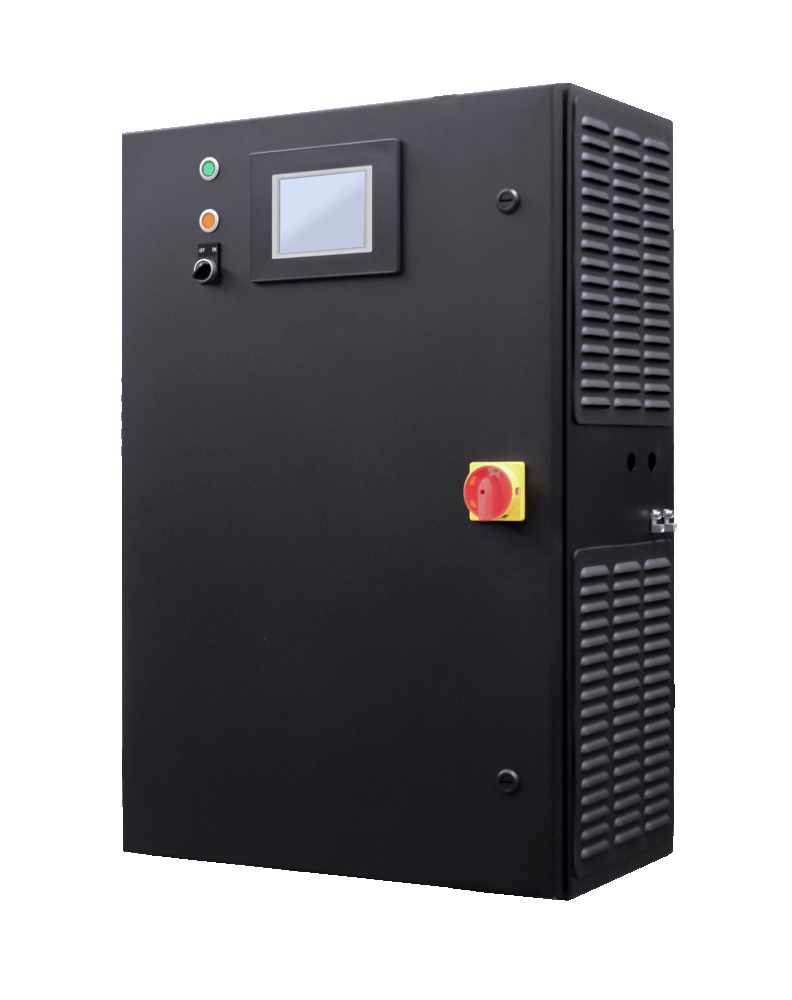

P-Class Ozone Systems

The P-100/200 systems have many standard features such as multiple safety interlocks, backflow prevention device, automated control (including proportionally controlled ozone output), complete isolation during shutdown, oxygen monitor with low level protection and integrated Monitor/ Controller(s). Utility features include Human Machine Interface (HMI) fully automated touch screen control panel, remote monitoring, remote control of system functionality and data logging.

Features
  • Automated Control System
  • Touch Screen Interface
  • Automated Proportionally Controlled Ozone Output
  • Plug & Play Oxygen System
  • Automated Oxygen Feed-Gas Monitoring
  • ORP Monitor/ Controller (optional)
  • Remote Monitoring/ Control
  • Data Logging
  • Wall-mount Ready
  • NSF/ANSI Standard 50 Certified for Secondary Disinfection



CLICK HERE TO LEARN MORE ABOUT OZONE TECHNOLOGY

Specifications
Width

24 in

Height

36 in

Depth

13 in

Ozone Requirement (gr/hr)

40 to 100 gr/hr, 100 to 150 gr/hr

Voltage

230 volt

Hertz

50/60 Hz

Enclosure Type

Black Powder Coat, Stainless Steel

Remote option

EWON Remote Connection, Without Remote

Interface

HMI Touch Screen

Data Logging

Removable USB Memory

PLC Control

Yes

ORP Monitor Control

Optional
