G-Cell Vent Valve 9-1144-02

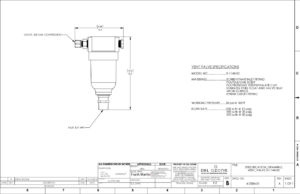

Product Specs, Features and Dimensional Drawing for:

G-Cell Vent Valve 9-1144-02 Specs, Doc# 4-2384-01 Rev.A

Click download for more information.

SPECIFICATIONS

MODEL

9-1144-02

MATERIALS

SCH80 KYNAR INLET FITTINGS

POLYSULFONE BODY

POLYBUTYLENE TEREPHTHALATE CAP

STAINLESS STEEL FLOAT AND VALVE SEAT

VITON O-RINGS

KYNAR OUTLET FITTING

WORKING PRESSURE

50 psi @ 100º F

FLOW RATE

258 scfh @ 15 psig

390 scfh @ 30 psig

570 scfh @ 50 psig
