G-Class Product Specs CD-15GV-50, CD-15G-50-PRO

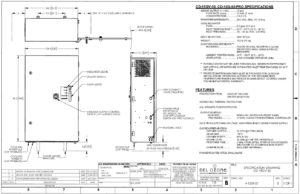

Product Specs, Features and Dimensional Drawing for:

CD-15GV-50, CD-15G-50-PRO Specs, Doc# 4-1309-01 Rev.E

Click download for more information.

OZONE OUTPUT (+/-10%)………..15 g/hr

FLOW RATE (max)……………13 scfh (6 lpm)

CONCENTRATION……………2.5-3.0 %

POWER REQUIREMENTS……….. 230 VAC, 50Hz, 1Ø, 5 Amp

COOLING WATER

FLOW………………………….. 0.1 gpm (0.4 lpm)

INLET TEMPERATURE** …….50℉ – 90℉ (10℃ – 32℃)

INLET PRESSURE……………15 – 40 psi (100 – 270 kPa)

HEAT REJECTION………………. 2067 BTU/hr

WEIGHT……………………………. 150 lb (70 kg)

LOCATION REQUIREMENTS***

MOUNTING………………….. FLOOR OR WALL MOUNT IN A CLEAN, PROTECTED AREA USING SUPPLIED BRACKETS.

AMBIENT TEMPERATURE… 40℉ – 100℉ (5℃ – 38℃)

VENTILATION……………….. 6 AIR CHANGES PER HOUR (MIN)

** POTABLE WATER MAY BE USED FOR COOLING. GENERATOR EFFICIENCY AND LIFE WILL BE IMPROVED WITH WATER INLET TEMPERATURES OF 80℉ OR LESS.

*** PROTECTION FROM WEATHER MUST BE PROVIDED FOR OUTDOOR INSTALLATIONS. OPERATING OUTSIDE OF THE RECOMMENDED TEMPERATURE RANGES MAY RESULT IN DAMAGE NOT COVERED UNDER THE MANUFACTURER’S WARRANTY.
