G-Class Product Specs CD-25G, CD-25G-PRO

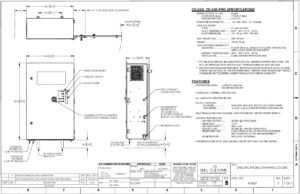

Product Specs, Features and Dimensional Drawing for:

CD-25G, CD-25G-PRO Specs, Doc# 4-0057 Rev.F

Click download for more information.

OZONE OUTPUT (+/-10%)………..25 g/hr

FLOW RATE (max)………….. 17 scfh (6 lpm)

CONCENTRATION……………3.0-4.0 %

POWER REQUIREMENTS……….. 120 VAC, 60Hz, 1Ø, 10 Amps

COOLING WATER

FLOW………………………….. 0.1 gpm (0.4 lpm)

INLET TEMPERATURE**…….50℉ – 90℉ (10℃ – 32℃)

INLET PRESSURE……………15 – 40 psi (100 – 270 kPa)

HEAT REJECTION………………. 2067 BTU/hr

WEIGHT……………………………. 150 lb (70 kg)

LOCATION REQUIREMENTS***

MOUNTING………………….. FLOOR OR WALL MOUNT IN A CLEAN, PROTECTED AREA USING SUPPLIED BRACKETS.

AMBIENT TEMPERATURE… 40℉ – 100℉ (5℃ – 38℃)

VENTILATION……………….. 6 AIR CHANGES PER HOUR (MIN)

** POTABLE WATER MAY BE USED FOR COOLING. GENERATOR EFFICIENCY AND LIFE WILL BE IMPROVED WITH WATER INLET TEMPERATURES OF 80℉ OR LESS.

*** PROTECTION FROM WEATHER MUST BE PROVIDED FOR OUTDOOR INSTALLATIONS. OPERATING OUTSIDE OF THE RECOMMENDED TEMPERATURE RANGES MAY RESULT IN DAMAGE NOT COVERED UNDER THE MANUFACTURER’S WARRANTY.
