G-Class Product Specs CD-5G

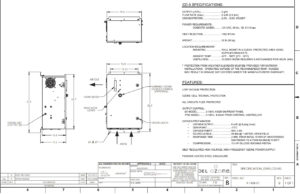

Product Specs, Features and Dimensional Drawing for:

CD-5G Specs, Doc# 4-1404-01 Rev.B

Click download for more information.

OUTPUT (±10%)………………………5 g/hr

FLOW RATE (max)……………………6 scfh (2.8 lpm)

CONCENTRATION……………………2.0% – 2.5% WEIGHT

POWER REQUIREMENTS:

DOMESTIC MODEL………120 VAC, 60 Hz, 1Ø, 5.5 Amps

HEAT REJECTION……………………1962 BTU/hr

WEIGHT……………………………… 52 lb (24 kg)

LOCATION REQUIREMENTS*

MOUNTING…………………WALL MOUNT IN A CLEAN, PROTECTED AREA USING SUPPLIED BRACKETS.

AMBIENT TEMP……………40°F – 100°F (5°C – 38°C)

VENTILATION………………CLOSED ROOM REQUIRES 6 AIR CHANGES PER HOUR. (MIN)

* PROTECTION FROM WEATHER ELEMENTS MUST BE PROVIDED FOR OUTDOOR INSTALLATIONS. OPERATING OUTSIDE OF THE RECOMMENDED TEMP. RANGES MAY RESULT IN DAMAGE NOT COVERED UNDER THE MANUFACTURER’S WARRANTY.
