G-Class Product Specs CD-15GV-51

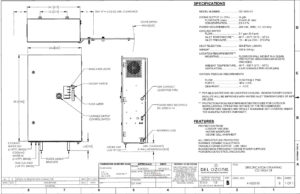

Product Specs, Features and Dimensional Drawing for:

CD-15GV-51 Specs, Doc# 4-1633-01 Rev.B

Click download for more information.

MODEL NUMBER………..…………CD-15GV-51

OZONE OUTPUT (+/-10%)………..15 g/hr

FLOW RATE (max)……………13 scfh (6 lpm)

CONCENTRATION……………2.5-3.0 %

POWER REQUIREMENTS……….. 230 VAC, 50Hz, 1Ø, 2.5 Amp

COOLING WATER

FLOW………………………….. 0.1 gpm (0.4 lpm)

INLET TEMPERATURE**…….50℉ – 90℉ (10℃ – 32℃)

INLET PRESSURE……………15 – 40 psi (100 – 270 kPa)

HEAT REJECTION………………. 300 BTU/hr (.09 kW)

WEIGHT……………………………. 130 lb (59 kg)

LOCATION REQUIREMENTS***

MOUNTING………………….. FLOOR OR WALL MOUNT IN A CLEAN, PROTECTED AREA USING BRACKETS PROVIDED.

AMBIENT TEMPERATURE… 40℉ – 100℉ (5℃ – 38℃)

VENTILATION……………….. 6 AIR CHANGES PER HOUR (MIN)

OXYGEN FEEDGAS REQUIREMENTS

FLOW…………………………..15 SCFH @ 7 PSIG

PURITY…………………………90% +/-5%

DEW POINT……………………< -73℃

** POTABLE WATER MAY BE USED FOR COOLING. GENERATOR EFFICIENCY AND LIFE WILL BE IMPROVED WITH WATER INLET TEMPERATURES OF 80℉ OR LESS.

*** PROTECTION FROM WEATHER MUST BE PROVIDED FOR OUTDOOR INSTALLATIONS. OPERATING OUTSIDE OF THE RECOMMENDED TEMPERATURE RANGES MAY RESULT IN DAMAGE NOT COVERED UNDER THE MANUFACTURER’S WARRANTY.
