G-Class Product Specs HECD-65-51

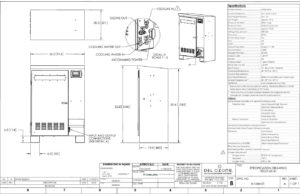

Product Specs, Features and Dimensional Drawing for:

HECD-65-51 Specs, Doc# 4-1644-01 Rev.A

Click download for more information.

Overall Dimensions……………………………36″ x 52.75″ x 20.5″

Mounting Dimensions…………………………36″ x 19″

Net Weight…………………………………………Approx 155 lb

Enclosure Material………………………………Steel, 14 ga

Enclosure Color……………………………………White Powdercoat

Power Requirement……………………………Approx 1.9 kW

Voltage Requirement…………………………230 VAC

Frequency…………………………………………50 Hz

Current Requirement……………………………8 A

Fuse.……………………………………………………NA

Cord….…………………………………………………NA

Ozone Production………………………………65 g/hr +/- 10%

Concentration……………………………………5.50%

FeedGas Flowrate………………………………30 scfh

Ozone Outlet……………………………………1/4″ FPT

Air Inlet………………………………………………NA

Cooling Water*…………………………………1 gpm (3.8 lpm)

Water Inlet / Outlet……………………………1/4″ FPT

Inlet Pressure………………………………………15 – 40 psi (100 – 275 kPa)

Operating Temperature……………………40 – 90º F (4 – 32º C)

Location Requirements:

Mounting Dimensions…………………………Bolted to concrete pad in clean area

Ambient Temperature**………………………40 – 90º F (4 – 32º C)

Ventilation…………………………………………6 Air changes per hour (min)

* Typical pool water may be used for cooling. Generator efficiency and life will be improv ed at inlet temps of 70º F or less.

** Operating this unit outside the listed temperature range may result in damage not covered under the manufacturer’s warranty.
