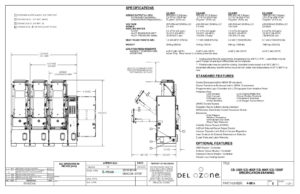

Product Specs, Features and Dimensional Drawing for:
CD-250F, CD-400F, CD-800F & CD-1200F Specs, Doc# 4-0816 Rev.E
Click download for more information.
SPECIFICATIONS
MODEL CD-250F CD-400F CD-800F CD-1200F
OZONE OUTPUT (+/-10%) 250 g/hr (13.2 lb/day) 400 g/hr (21.2 lb/day) 800 g/hr (42.3 lb/day) 1200 g/hr (63.5 lb/day)
- FLOW RATE (NOMINAL) 3.4 m3/hr (120 ft3/hr) 5.7 m3/hr (200 ft3/hr) 11.3 m3/hr (400 ft3/hr) 17.0 m3/hr (600 ft3/hr)
- CONCENTRATION (NOMINAL) 73 g/Nm3 (5.0% wt) 73 g/Nm3 (5.0% wt) 73 g/Nm3 (5.0% wt) 73 g/Nm3 (5.0% wt)
VOLTAGE 207-253VAC,50/60Hz,3 432-528VAC,50/60Hz,3 432-528VAC,50/60Hz,3 432-528VAC,50/60Hz,3
POWER 5.6 kVA 7.5 kVA 15.0 kVA 22.5kVA
COOLING WATER
- FLOW* 0.5 m3/hr (2.0 gpm) 0.7 m3/hr (3.0 gpm) 1.4 m3/hr (6.0 gpm) 2.0 m3/hr (9.0 gpm)
- INLET TEMPERATURE** 10-32C (50-90F) 10-32C (50-90F) 10-32C (50-90F) 10-32C (50-90F)
- INLET PRESSURE (MAX) 103 kPa (15 psi) 103 kPa (15 psi) 103 kPa (15 psi) 138 kPa (20 psi)
HEAT REJECTION (TO AIR) 1.4 kW (4781 BTU/hr) 1.7 kW (5806 BTU/hr) 3.4 kW (11600 BTU/hr) 5.1 kW (17400 BTU/hr)
WEIGHT 294 kg (650 lb) 318 kg (700 lb) 680 kg (1500 lb) 1043 kg (2300 lb)
LOCATION REQUIREMENTS
- AMBIENT TEMPERATURE 4-38C (40-100F) 4-38C (40-100F) 4-38C (40-100F) 4-38C (40-100F)
- MOUNTING Indoor Only. Floor mount in a clean, protected area.
