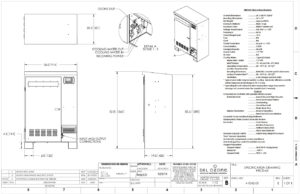

OVERALL DIMENSIONS……………36″ x 52.75″ x 20.5″
MOUNTING DIMENSIONS………..36″ x 19″
NET WEIGHT……………………………Approx. 220 lbs
ENCLOSED MATERIAL……………..STEEL, 14ga
ENCLOSED COLOR…………………WHITE POWDERCOAT
VOLTAGE REQUIREMENT…………230 VAC +/- 10%
FREQUENCY………………………60 Hz
CURRENT REQUIREMENT…………15 A
FUSE……………………………………N/A
CORD…………………………………..N/A
OZONE PRODUCTION……………65 g/hr +/- 10%
CONCENTRATION…………………5.50%
FEEDGAS FLOWRATE……………30 scfh
OZONE OUTLET…………………..1/4″ FPT
AIR INLET………………………………N/A
COOLING WATER……………………1 gpm (3.8 lpm)
WATER INLET/ OUTLET……………….1/2″ FPT
INLET PRESSURE……………………….15 – 40 psi (100 – 275 kPa)
OPERATING TEMPERATURE…………40℉ – 90℉ (4℃ – 32℃)**
LOCATION REQUIREMENTS***
MOUNTING………………….. BOLTED TO CONCRETE PAD IN A CLEAN, PROTECTED AREA USING BRACKETS PROVIDED.
AMBIENT TEMPERATURE**… 40℉ – 90℉ (4℃ – 32℃)**
VENTILATION……………….. 6 AIR CHANGES PER HOUR (MIN)
