G-Class Product Specs HECD-130

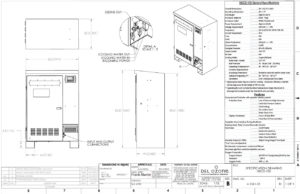

Product Specs, Features and Dimensional Drawing for:

HECD-130 Specs, Doc# 4-1041-01 Rev.D

Click download for more information.

Overall Dimensions……………………………36″ x 52.75″ x 20.5″

Mounting Dimensions…………………………36″ x 19″

Net Weight…………………………………………Approx 260 lb

Enclosure Material………………………………Steel, 14 ga

Enclosure Color……………………………………White Powdercoat

Power Requirement……………………………Approx 4.0 kW

Voltage Requirement…………………………230 VAC +/- 10%

Frequency…………………………………………60 Hz (50 Hz for HECD-130-03)

Current Requirement……………………………23 A

Fuse……………………………………………………NA

Cord……………………………………………………NA

Ozone Production………………………………130 g/hr +/- 10%

Concentration……………………………………5.50%

FeedGas Flowrate………………………………60 scfh (28 lpm)

Ozone Outlet……………………………………1/4″ FPT

Air Inlet………………………………………………NA

Cooling Water*…………………………………1 gpm (3.8 lpm)

Water Inlet / Outlet……………………………1/2″ FPT

Inlet Pressure………………………………………15 – 40 psi (100 – 275 kPa)

Operating Temperature**……………………40 – 90º F (4 – 32º C)**

Location Requirements:

Mounting Dimensions…………………………Bolted to concrete pad in clean area

Ambient Temperature**………………………40 – 90º F (4 – 32º C)**

Ventilation…………………………………………6 Air changes per hour (min)

* Typical pool water may be used for cooling. Generator efficiency and life will be improv ed at inlet temps of 70º F or less.

** Operating this unit outside the listed temperature range may result in damage not covered under the manufacturer’s warranty.
